CNC Cutting and Robotic Welding Machines for Steel Structure Fabricators
H-beam and pipe cutting lines, plate lasers and teaching-free welding robots, built in our Jinan factory since 2005. Cut labor costs by up to 60% and triple your fabrication output.
From Raw Steel to Welded Members
Most structural steel passes through four stations: section cutting, plate cutting, grinding and welding. We build machines for each of them, and they all work from the same drawings.
Section coping and cutting
CNC plasma and laser lines for H-beams, channels, angles and box sections. Bevels, slots, bolt holes and copes are cut in one pass.
- Reads Tekla DSTV (.nc) files
- H-beams, square tube and box sections
- No manual layout marking
Plate laser cutting
High-power fiber lasers for base plates, gussets and connection plates. Fast cutting with mirror-smooth edges.
- Maxphotonics source, Raycus or IPG optional
- Zero-burr edges, ready for fit-up

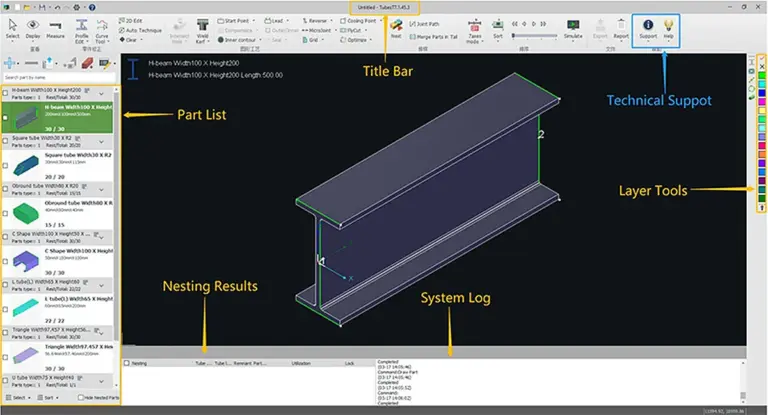

- Automatic nesting software
Surface grinding
Grinding and deburring machines that remove mill scale, rust and cutting burrs before welding.
- Even surface finish
- Better weld fusion
- Less manual grinding
Robotic welding
Teaching-free welding stations. A 3D laser scanner finds the seams and the robot welds them without manual programming.
- No robot teaching
- Seam tracking during welding
- Fewer skilled welders needed
Cutting and Welding Machines
Choose single machines, or ask us to plan a complete line from cutting to welding.
CNC Cutting Machines
H-Beam Laser Cutting Machine

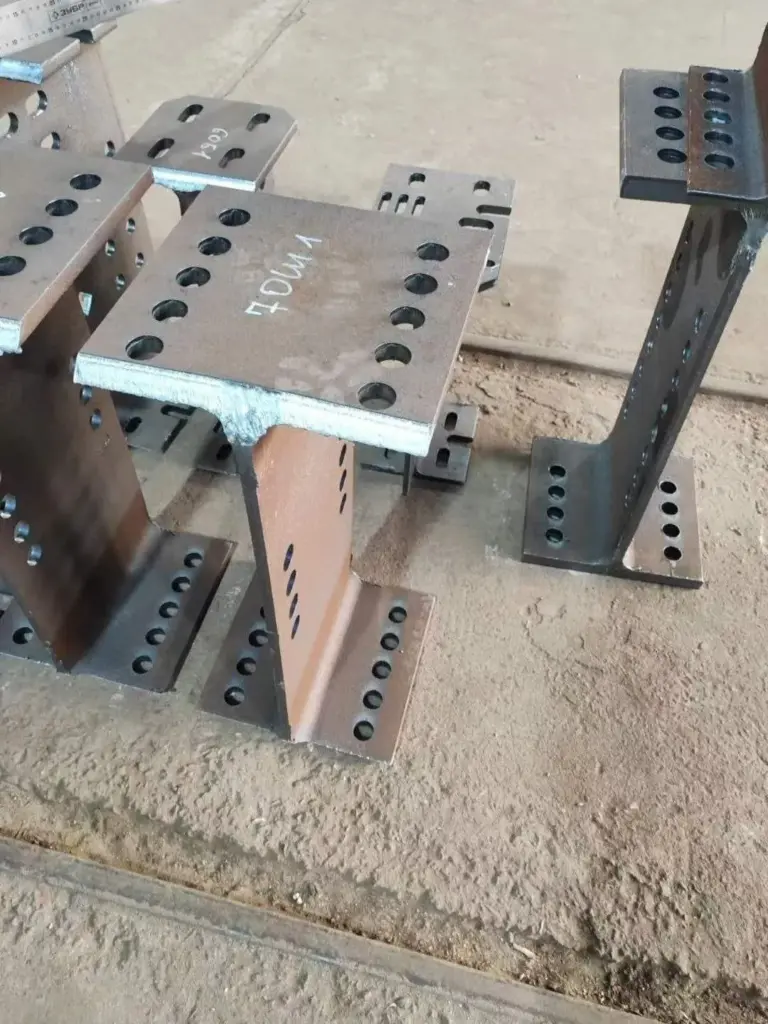

Bevels, slots and bolt holes in H-beams in one pass.
All-in-One Plasma Beam Cutter

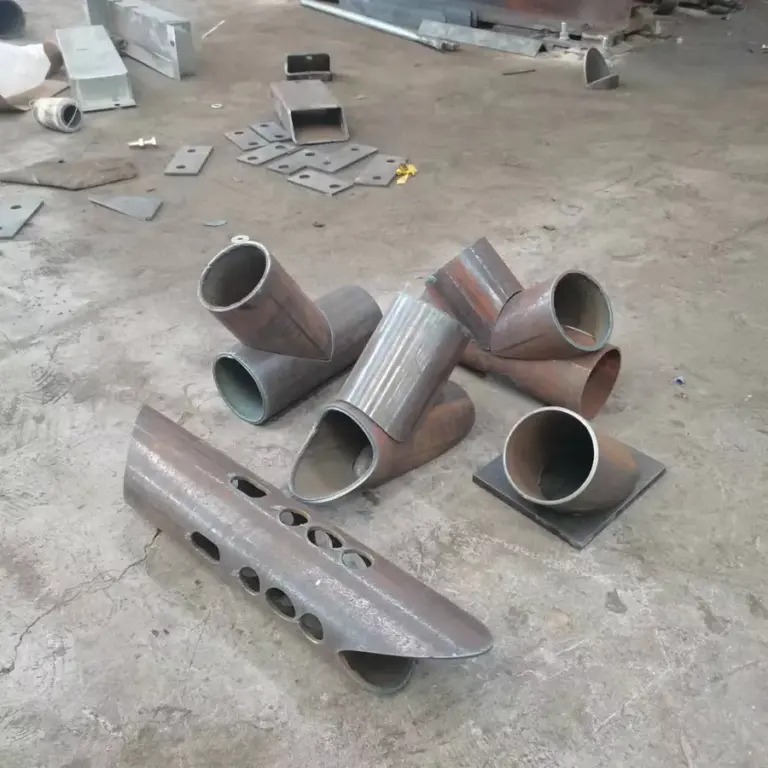

Beams, channels, box sections and pipe, with copes and bevels.
3D Robot Laser Cutting Machine
Fiber laser on a 6-axis robot for 3D and formed parts.
CNC Pipe Bevel Cutting Machine

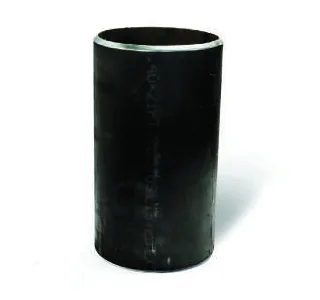

Cuts the pipe and its weld bevel in the same pass.
H-Beam Plasma Cutting Machine
Robotic plasma coping for large H-beams.

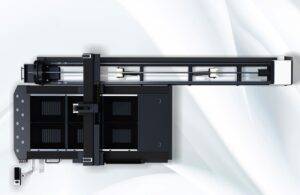

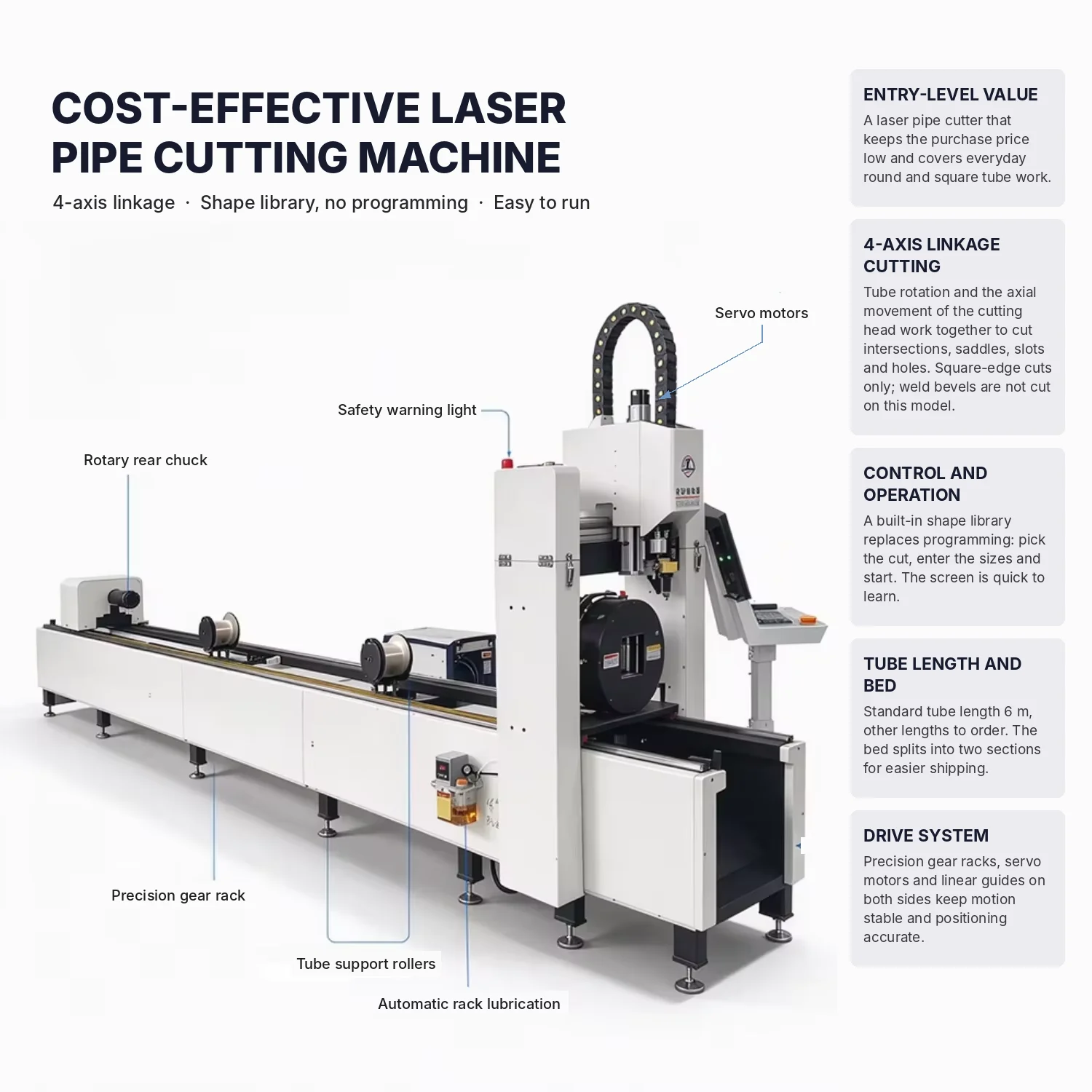

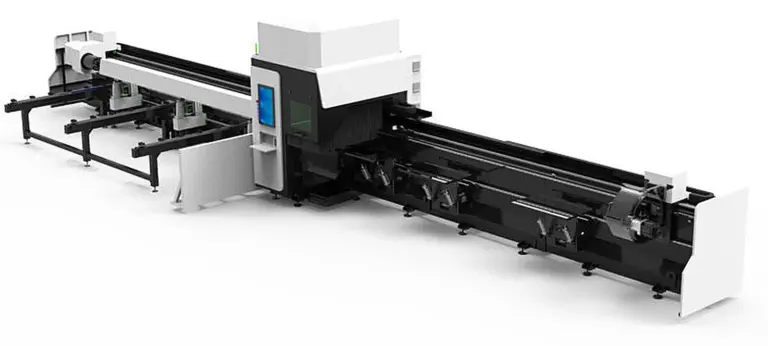

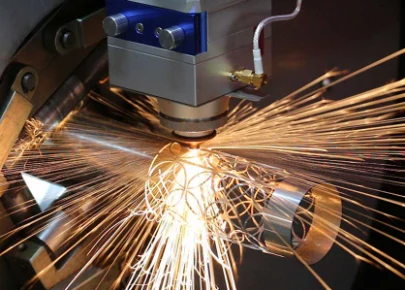

Tube Laser Cutting Machine
Round, square and rectangular tube with automatic loading.
Large Diameter Pipe Cutter
Heavy pipe from Ø600 to Ø2000 mm, with weld bevels.
Fiber Laser Cutting Machine (Plate)
Sheet and plate cutting for brackets, gussets and base plates.
Small Laser Cutting Machine
Compact fiber laser for small parts and small workshops.
3D Gantry Plasma Beveling Machine
Gantry plasma with a bevel head for thick plate weld preparation.
Stainless Laser Cutting Machine
Bright, burr-free stainless steel edges with nitrogen cutting.
Gantry CNC Laser Cutting Machine
Large-format gantry laser for long and wide plates.
Robotic Welding Systems
Teaching-Free Robotic Welding Station
Scans the part and welds it without programming. For H-beams and box columns.
Gantry Robotic Welding System
Welding robots on a gantry for long, heavy structural parts.

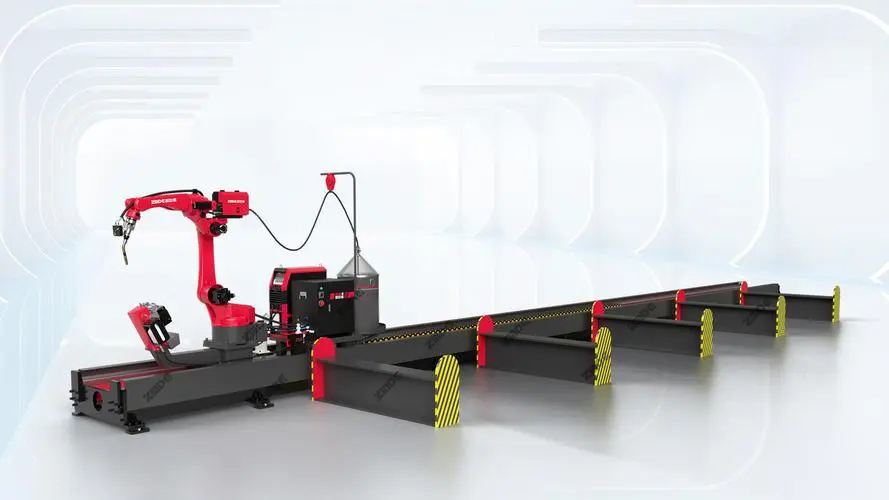

Robotic Welding Station
Robot cell with a positioner for heavy parts welded from several angles.

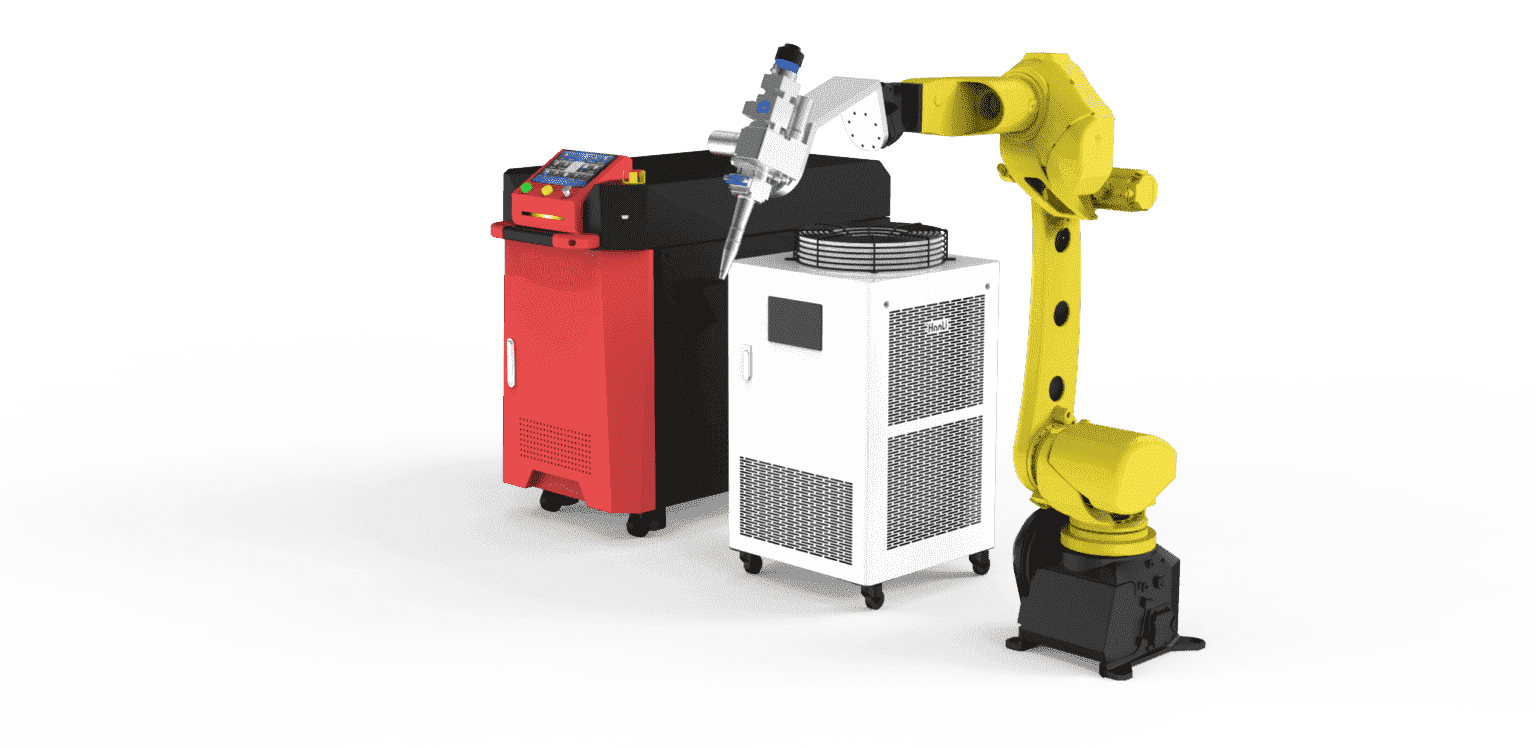

Robotic Laser Welding Machine
Fiber laser welding on a robot for thin to medium sheet.
Robotic Welding Cell
Robot welding cell for repeat structural parts.

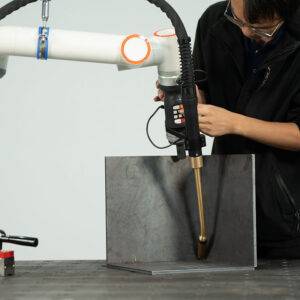

Cobot Welding Machine
Hand-guided cobot for small batches. Small footprint.
Handheld Laser Welding Machine
Handheld fiber laser welding for sheet metal shops.
AGV Robot Welding Car
A welding robot on a mobile base that drives to large parts.
Works with Tekla
The CNC reads DSTV (.nc) files from Tekla Structures and AutoCAD, so parts are not redrawn at the machine.
Support abroad
24/7 remote video support, plus engineers on site for installation, commissioning and operator training.
Clear lead times
Standard CNC machines ship in 30 to 45 days. Custom lines take about 60 days, including testing.

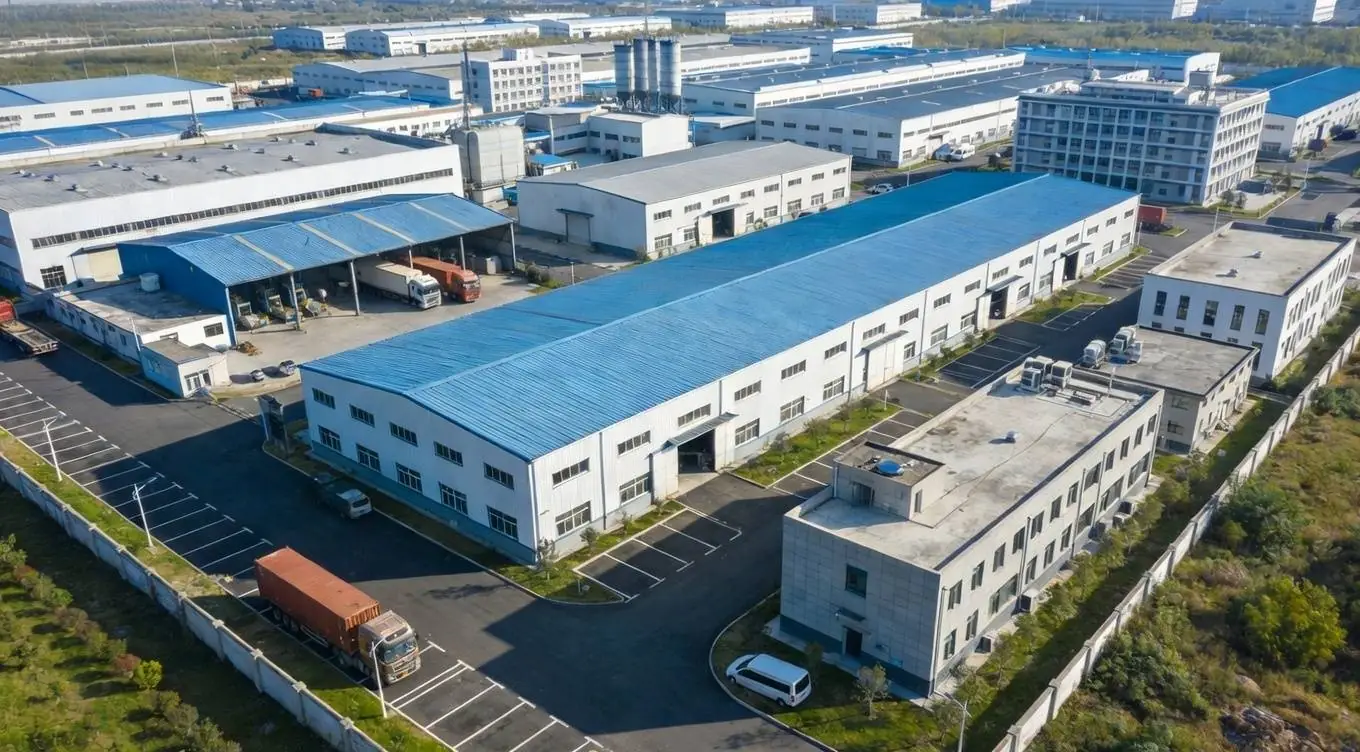

A Machine Factory in Jinan, China
We design and build CNC cutting machines and robotic welding systems for structural steel fabricators, and sell them directly from our factory.
Machines and Software from One Team
We build the machine frames and write the control and vision software ourselves. The cutting machines read your Tekla models, and the welding robots weld what the scanner sees, without a separate programmer.
Every system is assembled and test-run in our facility before export.
Latest Guides and Case Studies
Cutting tests, machine guides and customer deliveries.
H-Beam Laser Cutting Machine Price: What Sets the Cost
What sets the price of an H-beam laser: power (12/20/30 kW), source brand, section range and bed length, plus running costs, payback and what to send.
Cutting Beams from Tekla DSTV Files: Import, Nesting and Marking
How the H-beam laser cuts parts from Tekla DSTV (NC1) files: file blocks, import, nesting, bevels, and laser marking of part numbers and layout lines
Beam Processing Machines Compared: Laser, Plasma and Saw-Drill Lines
Compare H-beam laser, CNC plasma and saw-drill lines on copes, bevels, holes, marking, offcut and rework, and see which fits your structural steel.
Get a Quote
Tell us what you fabricate: beam sizes, plate thickness, pipe diameters or the parts you weld. An engineer will reply with a solution, usually within one working day.
