H series CNC Beam cutting machine

H series CNC beam cutting machine provides CNC beam cutting solutions. It is used to beam profiling. It’s control and programming software are based on Windows operating system. which can generate CNC codes from drawings and it save operators and engineers time.

This H beam cutting machine is widely used in steel structure, construction, shipbuilding, offshore engineering, elevator manufacture, glass wall installation, bridge and tower construction, and heavy equipment industries. After adding moving axis on torch, our square cutting machine an cut all types of bevels for welding

H beam cnc cutting machine mode choose

ModelH300H400H500H600H800
Max Width of beam300mm400mm500mm600mm800mm
Length choose6/12/15 meter
Cutting thicknessPlasma 0-40mm, Air cutting: 6-200mm
  • 6-axis linkage moving system, suitable for cutting various of H-shaped steel, channel steel, L-shaped steel, and T-shaped steel profiles.
  • shot blasting treatment, baking paint process, paint adhesion is stronger, more durable;
  • controller system have the drawing library, Just import the corresponding parameters, can achieve all kinds of steel and graphics cutting;
  • moving feeding cylinder clamping have greater clamping force, suitable for heavy H steel and larger size profile cutting;
  • pendulum shaft using harmonic reducer, more stable, not shaking gun;
  • lifting rod is thick and rigid;
  • The feeding table adopts High-precision guide rail bilateral Panasonic servo drive,improve the feeding efficiency, ensure the accuracy of the feed.

Fast feeding system and Nest software, CNC Plasma gas beam cutting machine sales

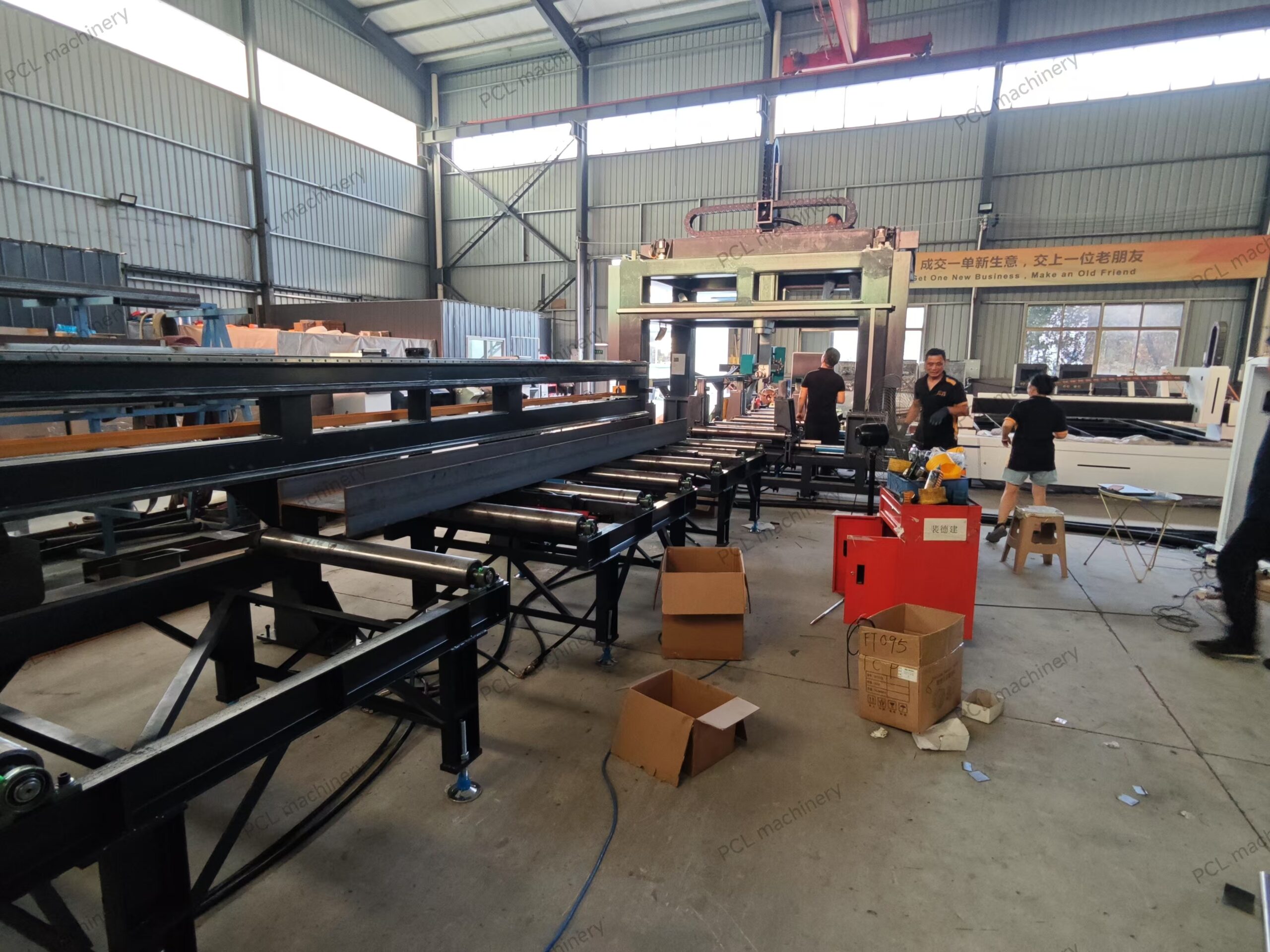

h beam cutter feeding system

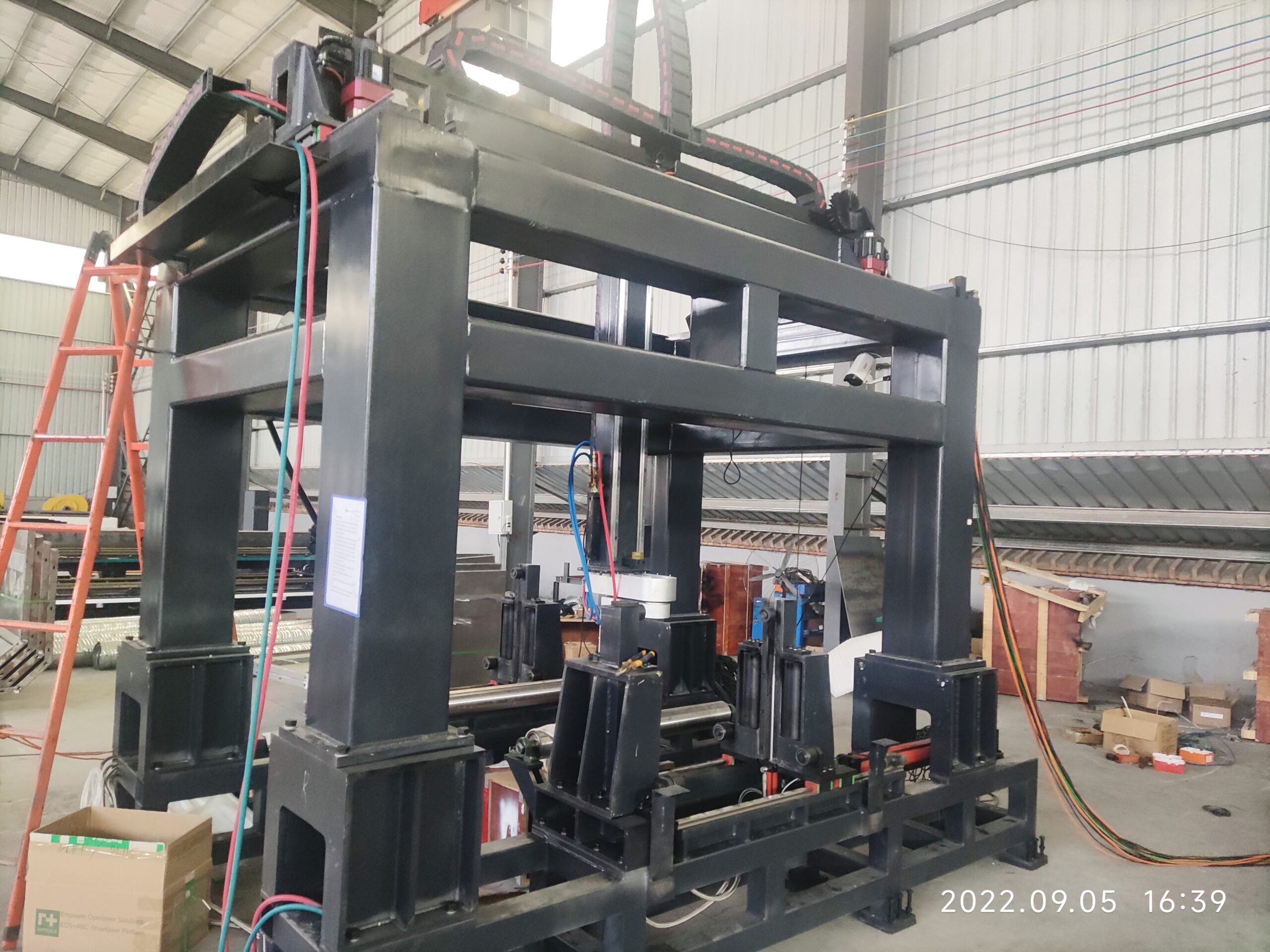

h beam cutting machine head

Solidworks design and nest software, Best machine for H/I beam, and U/L profile cutting.
