Tube laser cutting machine

laser pipe cutting machine image
laser tube machine installtion

tube laser fiber cutting machine is professional tube cutting fiber laser machine, suitable for all kinds of stainless tube,round tube, square tube and oval tube.

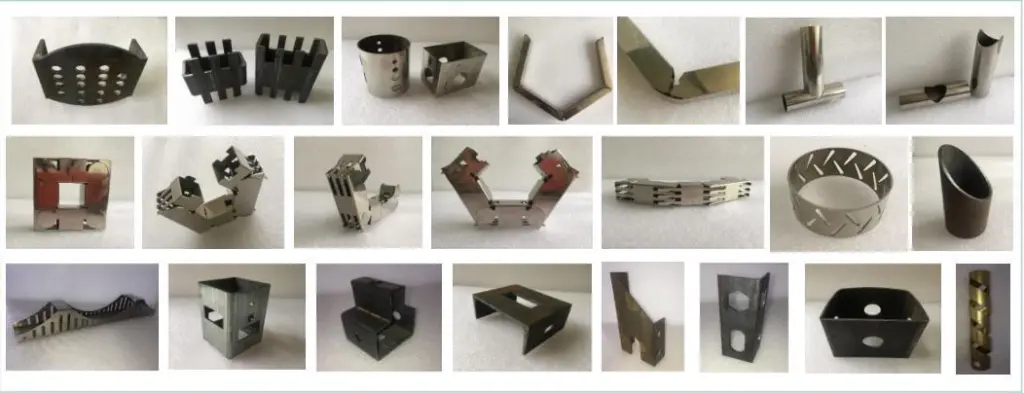

It can satisfy various tube cutting process such as tube cutting-off,tube hole cutting,or any shapes cutting on tube surface.

The machine adopt Raycus laser source,Swiss Raytools auto focus laser head,Japan Yaskawa servo motor to give you perfect tube laser cutting performance meanwhile ensure long time stable running,less failure rate,maintenance cost…etc

It can be also equipped with automatic material loading system to higher efficience,it is optional according to your demands.

  • 20-220mm Diameter;
  • 6000mm Effective Cutting Length;
  • 1000-4000w Raycus Laser Source;
  • Raytools Autofocus Head(Precitec Optional);
  • Auto Loading & Unloading System(Optional);
  • Automatic Front Chunk & Back Chunk
Machine Specification
Item
Specification
Max pipe length(mm)
6000
Max round pipe diameter(mm)
220
Minmun round pipe diameter(mm)
20
Max square pipe diameter(mm)
140*140
Minmum square pipe diameter(mm)
20*20
Max pipe thickness(mm)
10
Minmum pipe thickness(mm)
1
Effective stroke
X(mm)
6050
Y(mm)
200
Z(mm)
150
W(°)
360
Position accuracy
X(mm)
±0.05
Y(mm)
±0.02
Z(mm)
±0.01
W(°)
±0.01
Repeat accuracy
X(mm)
±0.03
Y(mm)
±0.01
Z(mm)
±0.005
W(°)
±0.005
Max position speed
X(m/min)
72
Y(m/min)
72
Z(m/min)
48
W(n/min)
150
